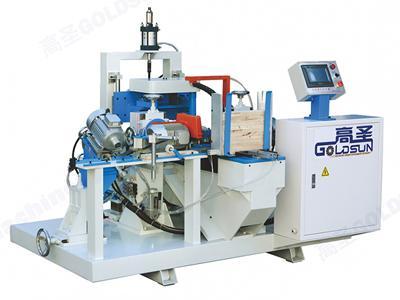

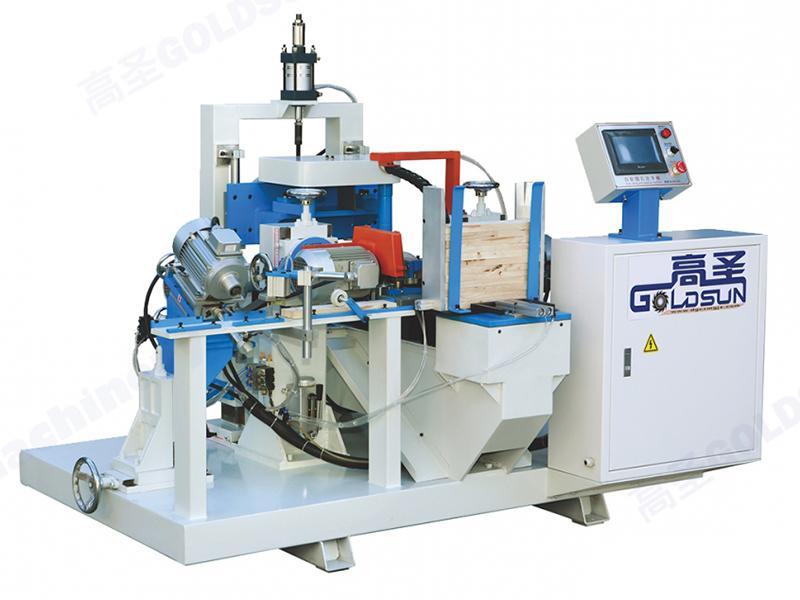

Chair Side Plate Drilling Machine

Chair Side Plate Drilling Machine

Description

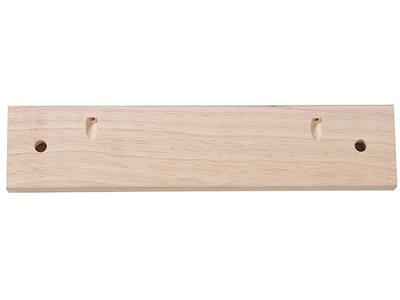

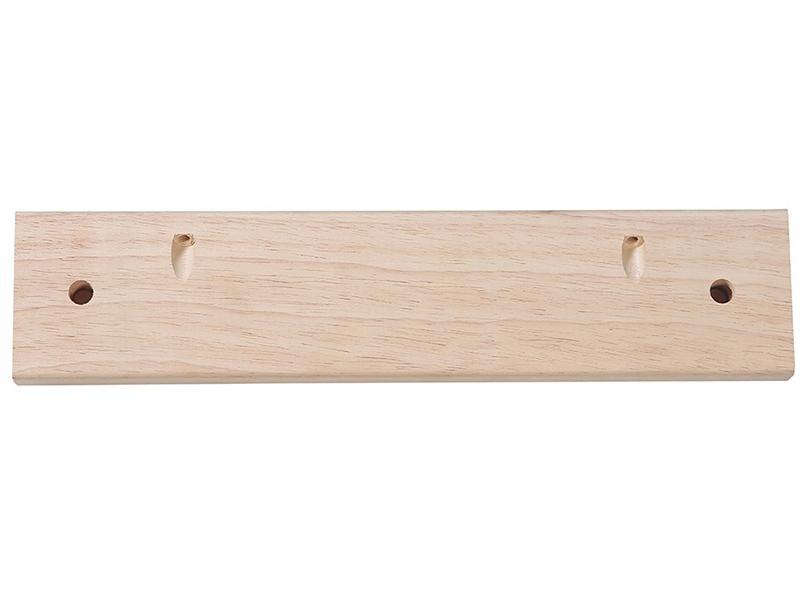

The GS-69 chair side plate drilling machine is mainly used for drilling and cutting wooden side plates for making dining table and chair. This machine can mostly complete 6 pieces of wood in one minute, that is 2800 every 8 hours daily.

Parameters
Servo motor 400W
Cutting motor 1.5KW×2
Drilling motor 2.2KW×2
Machine size(length*width*height) 2000×1600×1300mm
Weight About 800kg
Characteristics
  • The cutting hole position and drilling hole position are both precise.
  • This machine is easy to operate.
  • The machine is designed with a compact, space saving structure.
  • The user interface is clear and easy to operate.
  • The high-quality motors and corresponding devices make the operation smooth and stable.
  • The electric circuit is designed to showcase its quality, making operation simple and convenient.
Related
wood drill, wood forming, mortise and tenon joint
